Centru de prelucrare NEWAY

Centru de prelucrare NEWAY

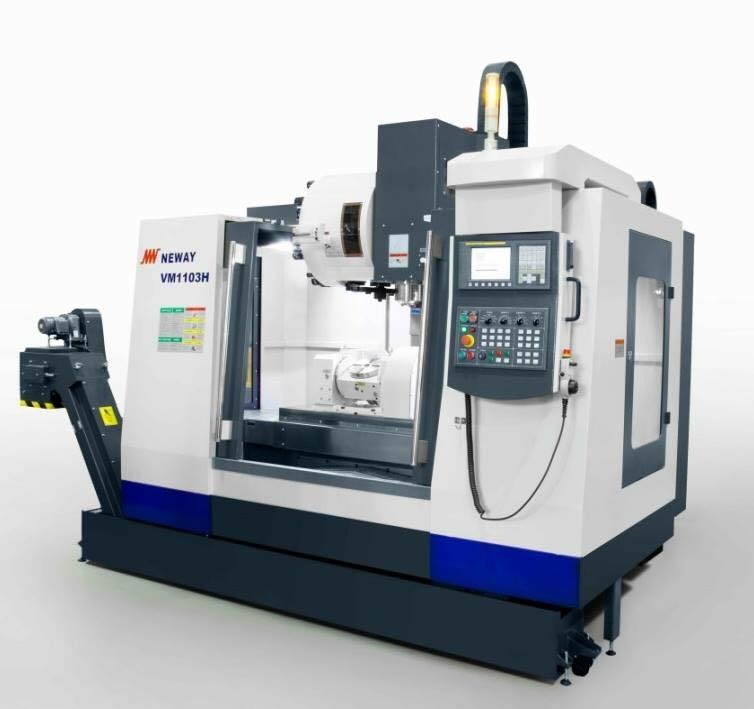

Centru de prelucrare NEWAY VM1103 NOU cu livrare de pe stoc Travel X Y Z 1000 520 560 mm Spindle nose to machining table 150 710mm Worktable Length Width 1100 520 mm Max. load capacity 800kg T slot No.*width*distance 5*18*100 Spindle speed 10 8000 rpm Spindle motor 7.5 11 kW Spindle taper BT40 Rapid feed speed (X Y Z axis) 36 36 30 m min Cutting feed speed 1 10000 mm min Tool magazine capacity 24T Max diameter length weight of tool 78mm 300mm 8kg Max tool dia. (without adjacent tool) 78 130mm Tool change way random Tool change time 1.8s Positioning accuracy (X Y Z axis) 0.008 0.008 0.008 mm Repeatability (X Y Z axis) 0.005 0.005 0.005mm Max drilling diameter 40 Max tapping screw diameter M20 Milling capability min Power capacity 25 kVA Air pressure 6 8 bar Cooling tank capacity 300L Machine Dimension (l w h) 4200 2300 3000mm Net weight 7000kg Standard feature FANUC Oi MF 5 Hand held operating unit (China) Arm type tool magazine 24 tools (SY Taiwan) .X YZ linear guideway Chain type chip conveyor Electric cabinet air conditioner .Automatic lubricating system Tri color lamp Air through spindle Air curtain protection Air gun Work lamp Random technique standard document accessories Basic installation package VALOARE 55 000 EURO TVA

1. Telefon: 0724315195,
2. Locatie: CLUJ, Cluj Napoca
3. E-mail: trimite mesaj
4. Pret: 55000 eur
5. Data: 05 March 2019
